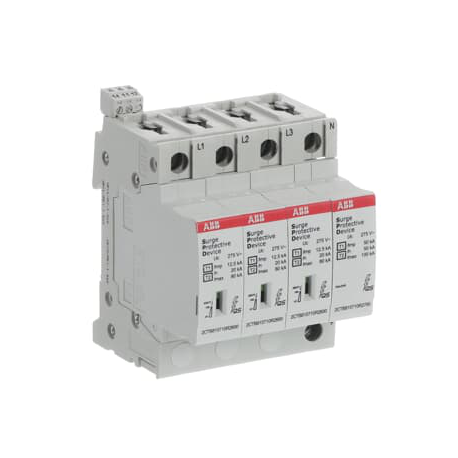

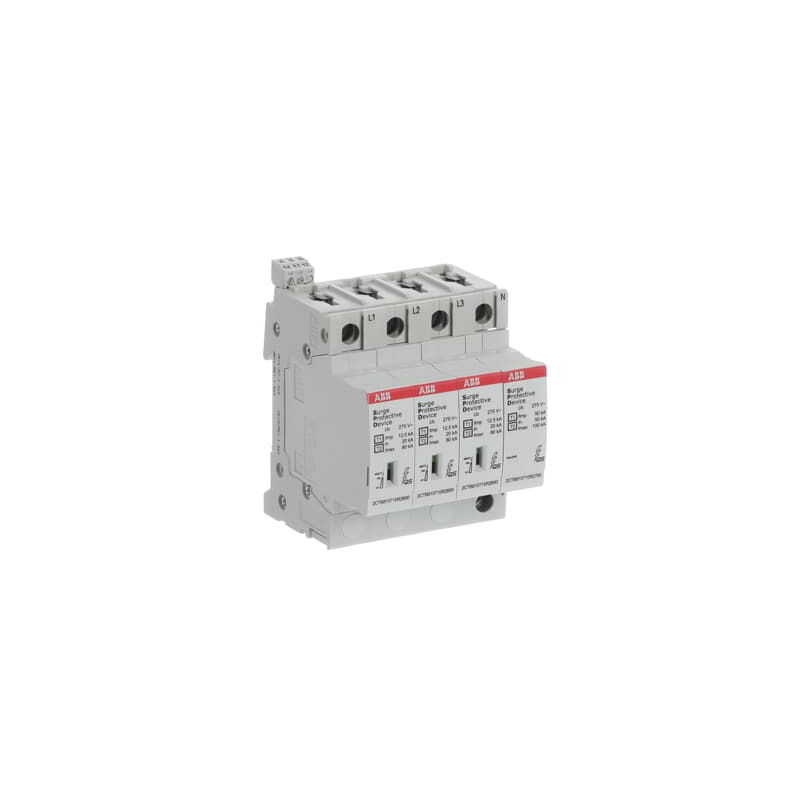

ABB OVR T1+T2 (B+C) Surge Protector
- Combines Type 1 and Type 2 protection for comprehensive surge defense
- High discharge capacity up to 50kA for robust protection
- Compact design for easy integration into existing systems
- LED indicators for real-time status monitoring
- Meets international standards for safety and performance
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
ABB OVR T1+T2 (B+C) Surge Protector
The ABB OVR T1+T2 (B+C) Surge Protector is an advanced solution designed to protect low-voltage electrical systems from the damaging effects of direct and indirect lightning strikes, as well as other transient overvoltages. This combined Type 1 and Type 2 surge protective device ensures reliable protection in both residential and industrial settings.
Purpose
The OVR T1+T2 (B+C) Surge Protector is used to safeguard electrical installations by diverting high-energy surges, such as those from lightning, away from sensitive equipment. It protects the main power lines and ensures continuity of service in environments prone to frequent electrical surges.
Key Features
- Type 1+2 classification, offering dual protection for both direct and indirect lightning surges.
- Tested according to IEC 61643-11 standards, ensuring compliance with global safety norms.
- High discharge current capacity (up to 12.5 kA Iimp per pole) for superior protection against high-energy surges.
- Modular DIN-rail mountable design, allowing for easy installation and maintenance.
- Visual status indication for each module and optional remote monitoring for continuous performance tracking.
Applications
- Residential and commercial buildings
- Telecommunication installations
- Industrial control panels
- Renewable energy systems (solar, wind)
Why Choose ABB?
ABB is a world leader in electrical protection technologies. The OVR T1+T2 series demonstrates ABB's commitment to providing innovative, high-quality solutions for electrical safety. With its proven reliability and compliance with international standards, ABB surge protectors are trusted by professionals for critical applications, ensuring maximum protection and minimal downtime.
Product features
| Nominal voltage | 230 / 400 V |
| Mounting | DIN 35 mm |
| Type | T1+T2 (B+C) class |
| Maximum continuous voltage | 255 V |
