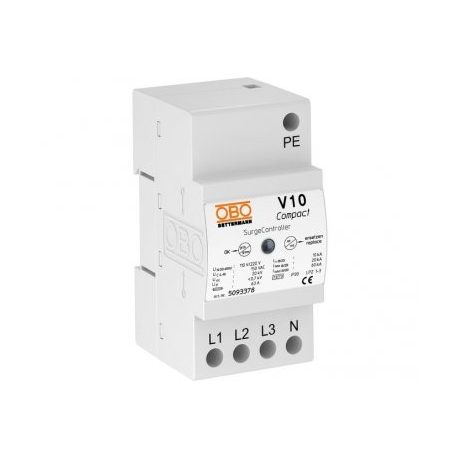

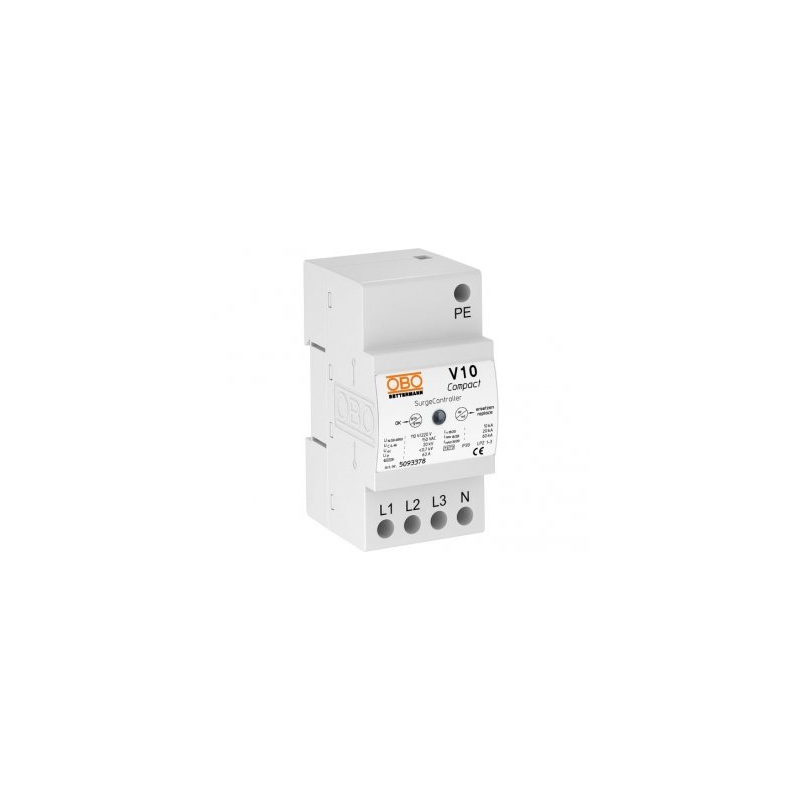

Surge protection device, compact module, type 2+3
- surge protection for potential equalization according to VDE 0100-443 (IEC 60364-4-44)
- discharge size 60 kA (8/20) in total
- integrated 3+1 solutions for TN and TT network systems in a 45 mm module space
- powerful varistor technology
- with thermal and dynamic disconnect device, optical and status indicator
- version ...AS with additional acoustic signals for faults (switchable)
Usage: in distribution boards for protection between high and three-phase power system devices.
Product features
Nominal voltage | 230 / 400 V |
Standards | EN 61643-11 |
Mounting | DIN 35 mm |
Number of poles | 3P+NPE |
Type | T2+T3 (C+D) class |
Pulse current | 10 kA (8/20) |
Maximum continuous voltage | 385 V |
