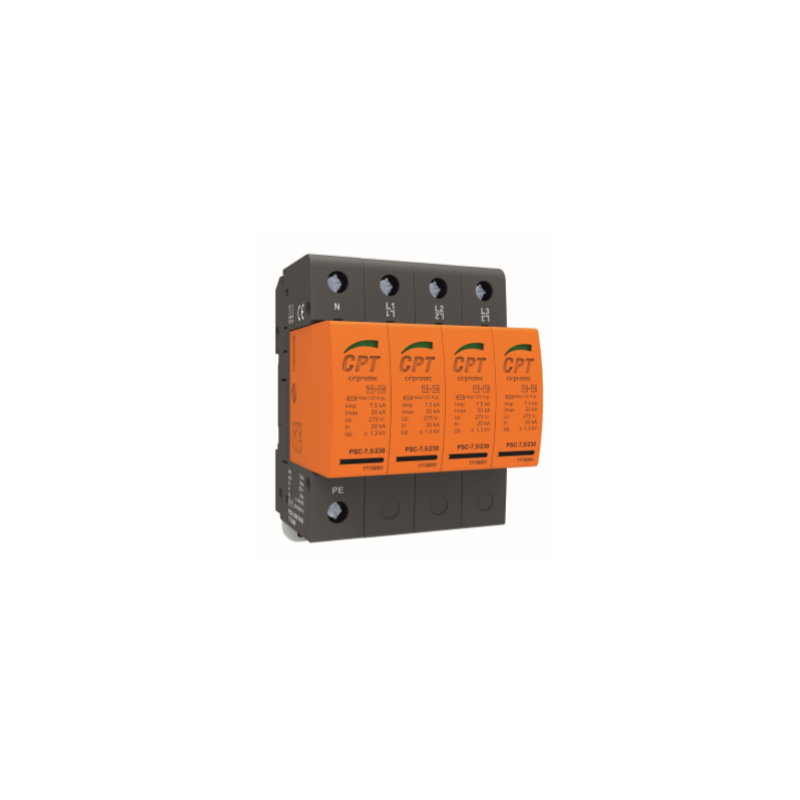

CIRPROTEC CPT B+C 7.5/50KA 4P Surge Protector (77738485)
- Combines Type 1 and Type 2 surge protection for comprehensive safety
- Rated for 7.5kA nominal discharge current and 50kA maximum discharge current
- Four-pole design suitable for three-phase systems
- High energy absorption capacity ensures robust protection for electrical installations
- Easy installation and maintenance with modular design
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
Information about overvoltage selection
Product features
| Nominal voltage | 230/400 V |
| Dimensions (L x W x H) | 70 x 72 x 90 mm |
| Mounting | DIN 35 mm |
| Number of poles | 3P+N |
| Type | T1+T2 (B+C) class |
| Temperature | -40° C iki +80° C |
| Pulse/discharge current | 7.5 kA (10/350) |
| Voltage protection level | 1.3 kV |
| Maximum continuous voltage | 275 V AC |
