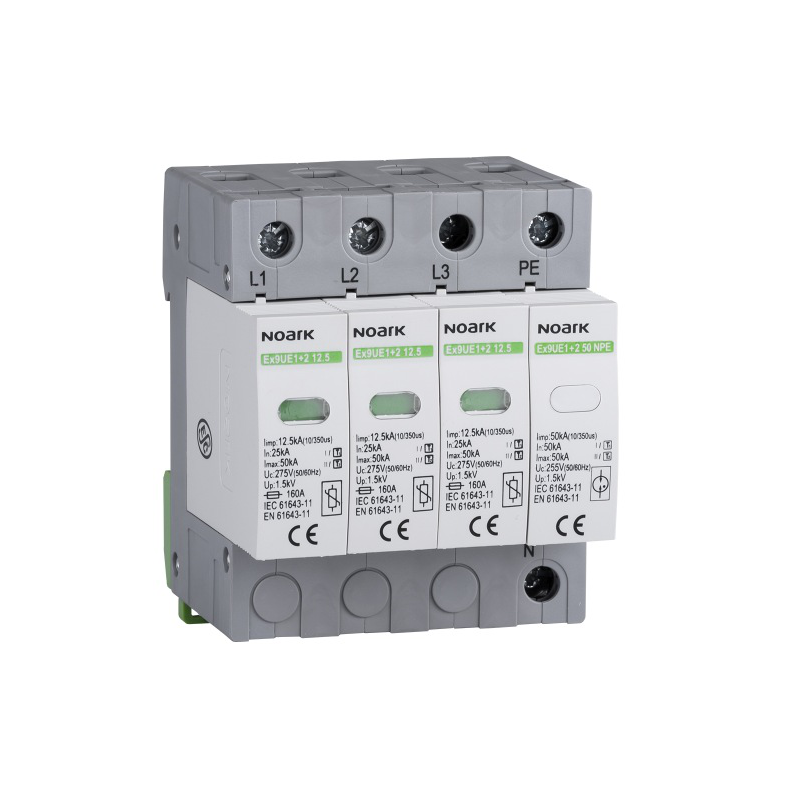

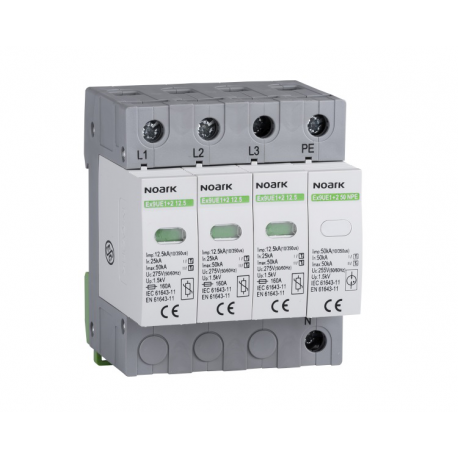

NORAK B+C Ex9UE 12.5 3PN 275 overvoltage limiter

Reference: 103340
Code: 103340
Name: 8592765033413
This product is in stock
Manufacturer Noark
159,30 €
Quantity

Warehouse stock

Out of stock
Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V 07:00 - 16:00
In stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
Out of stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
In stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

More info

The Ex9UE1+2 12.5 series is a group of Class I + II overvoltage protection devices. They are designed to protect against indirect and low-intensity lightning strikes. In a standard three-phase TN-C network, these devices provide protection up to the required III, IV level (EN 62305), when the total electrical lightning current entering the electrical installation is 37.5 kA, and the total lightning strike current is 75 or 100 kA (this depends on the physical configuration and where the lightning grounding point, electrical installation grounding point, and overvoltage protection device are located). The Ex9UE1+2 12.5 model is equipped with high-energy metal oxide varistors. This model ensures a quick response and both Class I and II characteristics. The modular design with plug-in components allows for easy and quick replacement of functional modules if the MOV service life ends due to intensive operation or frequent overvoltage.

Information on the manufacturer's website and more about selecting overvoltage protection

For TN-C, TN-S networks.

Product features

Degree of protection IP 20 / IP 40
Nominal voltage 230 / 400 V AC
Mounting DIN 35 mm
Number of poles 3 P + N
Type T1+T2 (B+C) class
Pulse current 12.5 kA (10/350) / 50 kA (maks.)
Maximum continuous voltage 275 V AC
