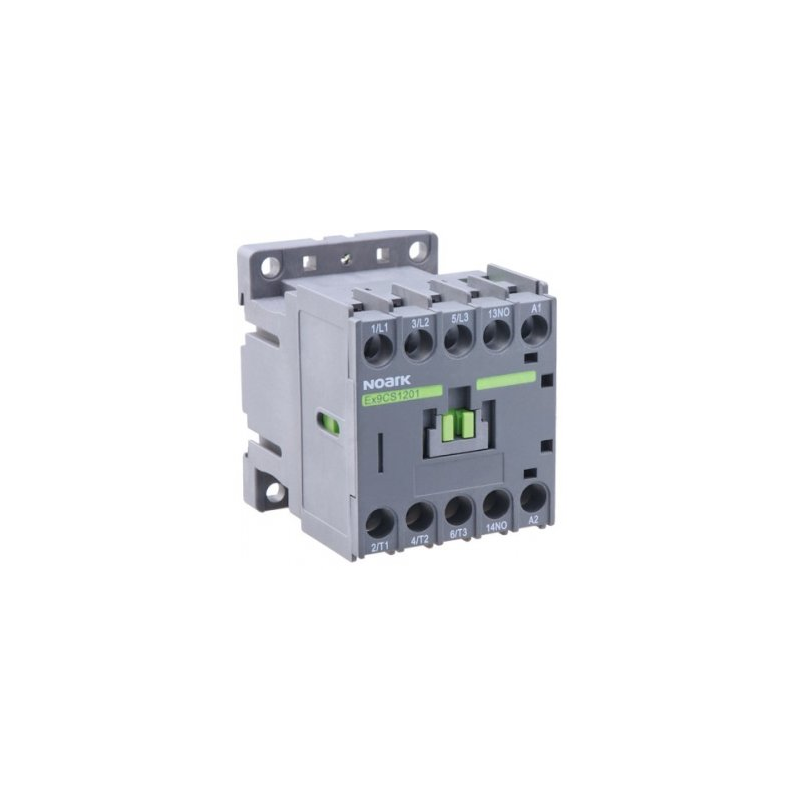

NOARK Ex9CS mini contactor

Reference: noark-ex9cs
This product is in stock
Manufacturer Noark
13,50 €

Warehouse stock

Out of stock
Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V 07:00 - 16:00
In stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
Out of stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
In stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

Accessories Accessories

More info

The Ex9CS mini contactors are designed for industrial and domestic use, meeting the requirements of the IEC / ČSN EN 60947-4-1 standard. Their biggest advantage is their compact dimensions. Therefore, their use will prove beneficial primarily where space-saving installation requirements are raised. Contactor versions are offered for nominal currents of 6, 9, and 12 A, usage category AC-3, with a set thermal current without a cover Ith 20 A. Standard mini contactors are offered for three or four phases and also a version for four phases with main contact distribution - 2 on and 2 off. In the three-phase version, one auxiliary on or off contact is installed. In all versions, one front auxiliary contact element with four contacts can be installed. The devices are designed to operate at voltages up to 690 V AC. The coil control voltage can be selected in the range of 24 - 415 V AC.

Product features

Nominal voltage 230 V AC
Rated current iki 12 A
Mounting DIN 35 mm arba ant plokštės
Size S12
Number of poles 3P
