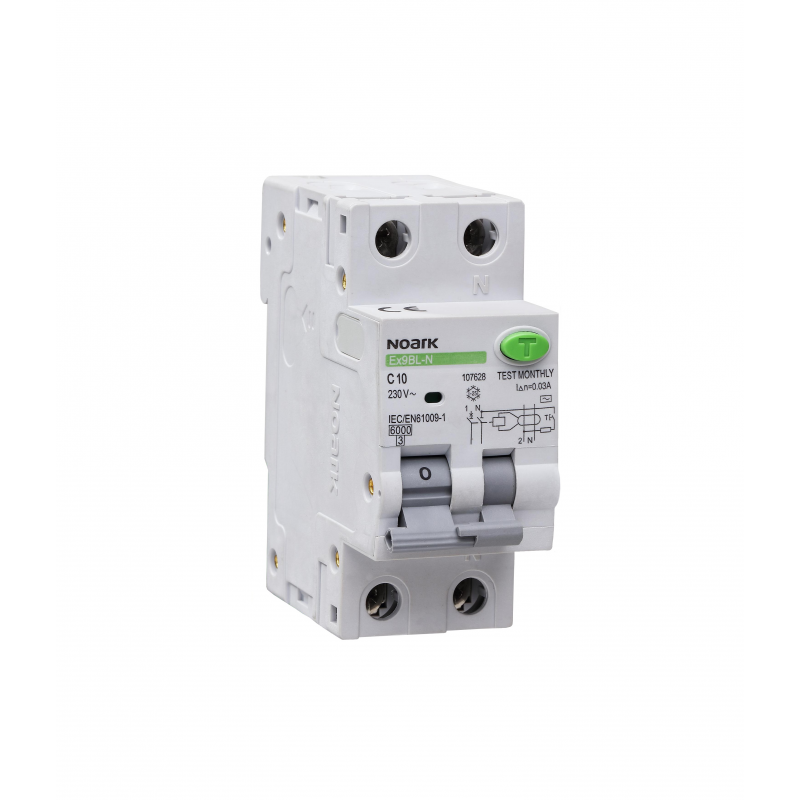

NOARK Ex9BL-N 1P+N Residual Current Circuit Breaker with Overcurrent Protection

Reference: noark-ex9bl
This product is in stock
Manufacturer Noark
28,40 €

Warehouse stock

In stock
Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V 07:00 - 16:00
In stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
In stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
In stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

More info

Modular combined residual current devices with overload protection, disconnection capacity of 10 kA (Ex9BL-H series) or 6 kA (Ex9BL-N series). The devices comply with the IEC / EN 61009 standard requirements. These protective devices are intended for use in households and industry. They require 50% less space than would be needed using separate residual current and circuit breaker devices.

The Ex9BL series features a nominal current from 6 to 40 A, as well as B and C disconnection characteristics. The device parameters depend on the nominal 30, 100 and 300 mA residual current and AC and A sensitivity. Due to the 10 kA (-H) and 6 kA (-N) disconnection capacity, they are intended for use in all areas, including the most complex ones.

Information on the manufacturer's website

Product features

Rated current iki 40 A (30mA)
Mounting DIN 35 mm
Size 2 modulių
Breaking capacity 6 kA
Disconnection characteristic C
Number of poles 1P+N
