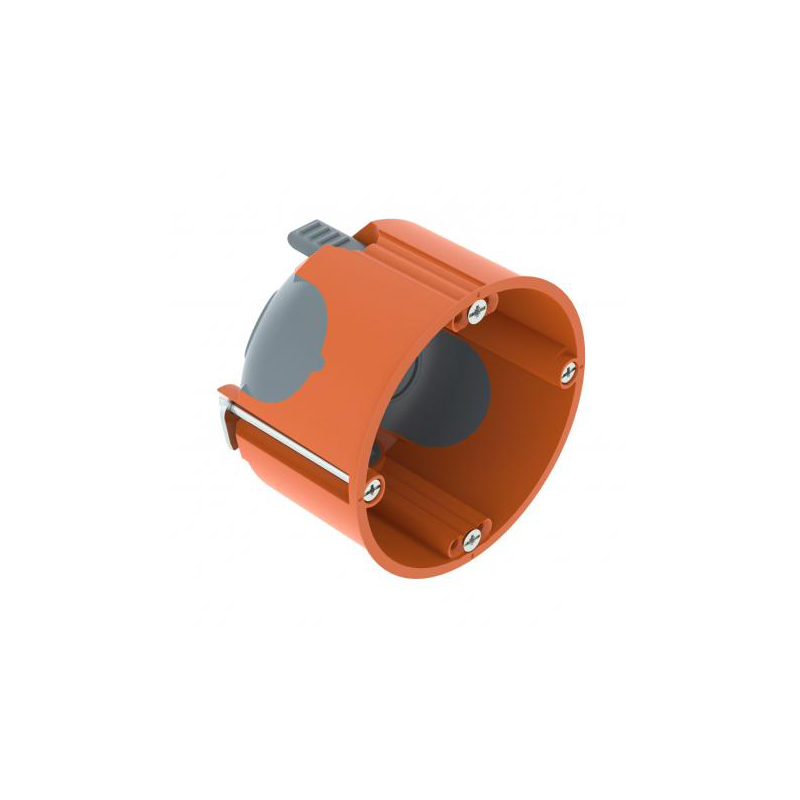

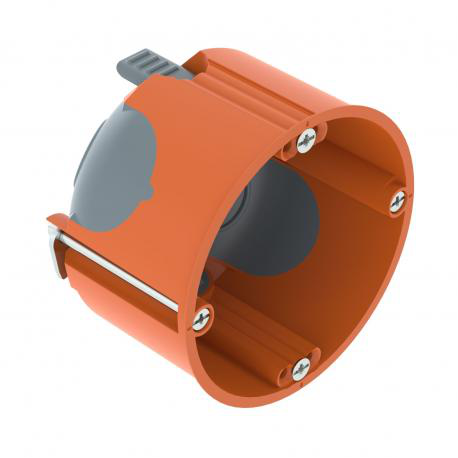

OBO BETTERMANN HG47-L 2003806 sealed box for drywall
Reference:
P015867
Code:
2003806
Manufacturer
Warehouse stock
Out of stock
Elstila logistikos centras
9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V
07:00 - 16:00
In stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
In stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
In stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
More info
Installation box for structural walls with sealed membrane inputs, designed for mounting in hollow walls, with a structural depth of at least 47 mm, and a plate thickness from 5 to 40 mm.
• 2 x 3 screw caps
• Installation screws, clamp straps
• 2 combined pipe inputs Ø 20 and 25 mm
• 2 inputs for NYM cables 3 x 1.5 mm
• 2 inputs for 3 x 2.5 mm² or 5 x 1.5 mm² NYM cables
• Sealed connection with others installation boxes using ZH 11-V type connecting elements
Information on the manufacturer's website
Product features
| Degree of protection | IP 30 |
| Color | oranžinė / pilka |

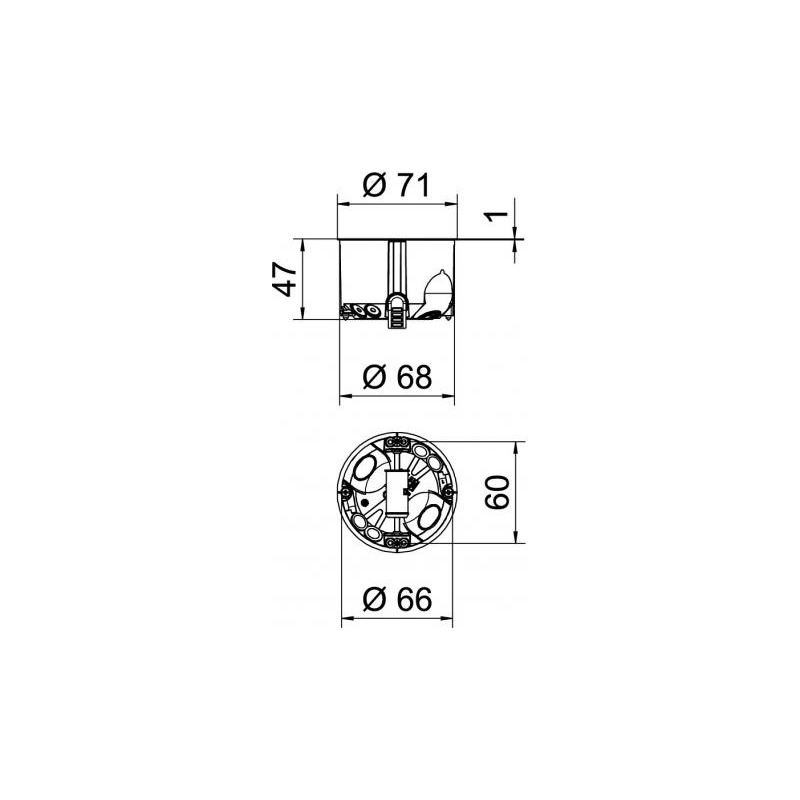

| Dimensions | 68 x 47 mm |
