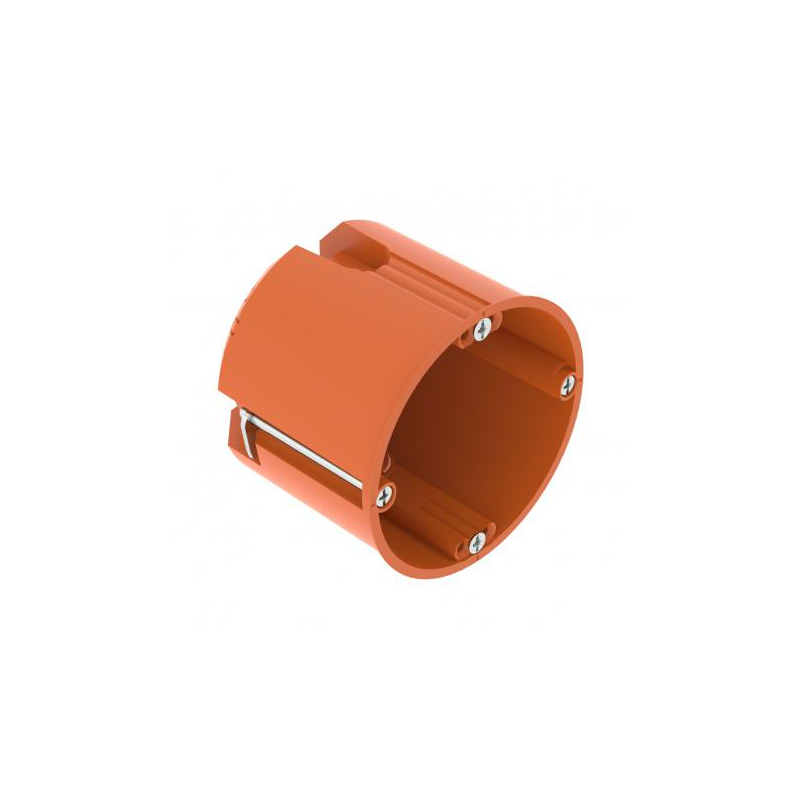

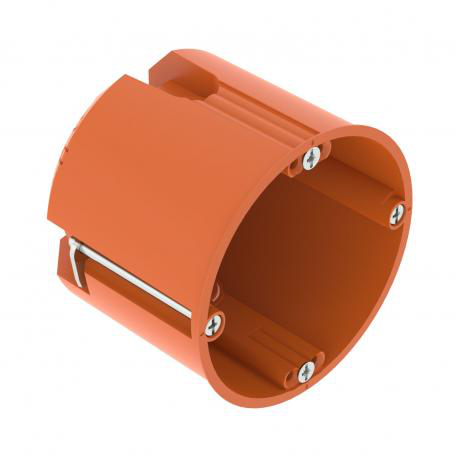

OBO BETTERMANN HG61 2003804 extended box for plasterboard
Reference:
P015864
Code:
2003804
Manufacturer
Warehouse stock
Out of stock
Elstila logistikos centras
9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V
07:00 - 16:00
In stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
In stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
In stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
More info
Installation box for structural walls, designed for mounting into hollow walls with a structural depth of at least 61 mm, and a panel thickness from 5 to 40 mm.
• 2 x 3 screw caps
• Installation screws, clamp strap
• 2 combined pipe inlets, Ø 20 and 25 mm
• 4 inlets, for 3 x 1.5 mm NYM cables
• 2 inlets, for 3 x 2.5 mm² or 5 x 1.5 mm² NYM cables
• 2 inlets, for 5 x 2.5 mm² or 7 x 1.5 mm² NYM cables
• Connection with other device boxes; connected with ZH 11-V type connection elements
Manufacturer information on the website
Product features
| Degree of protection | IP 30 |
| Color | oranžinė |

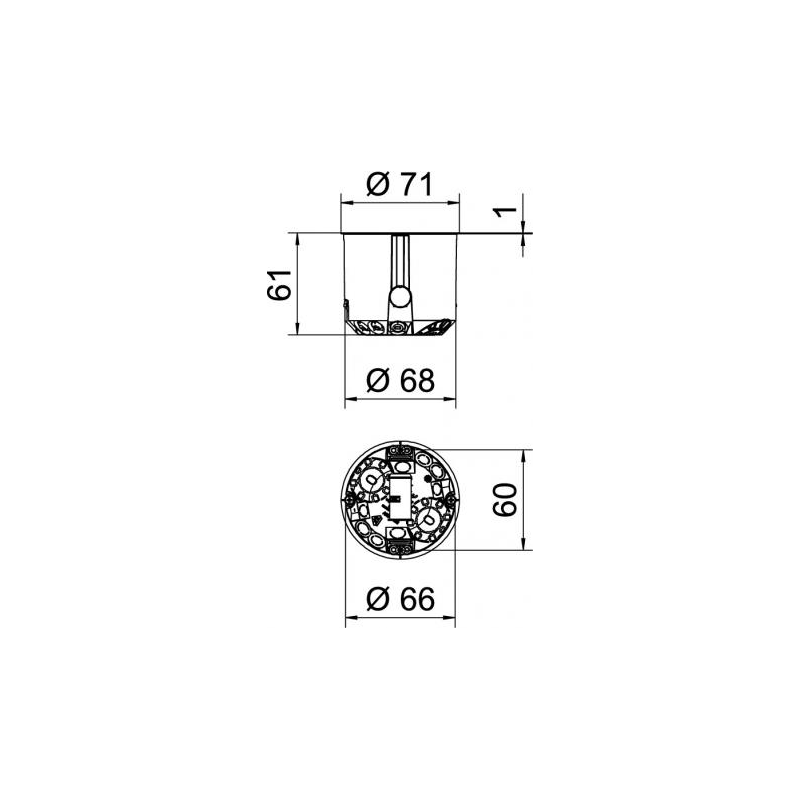

| Dimensions | 68 x 61 mm |
