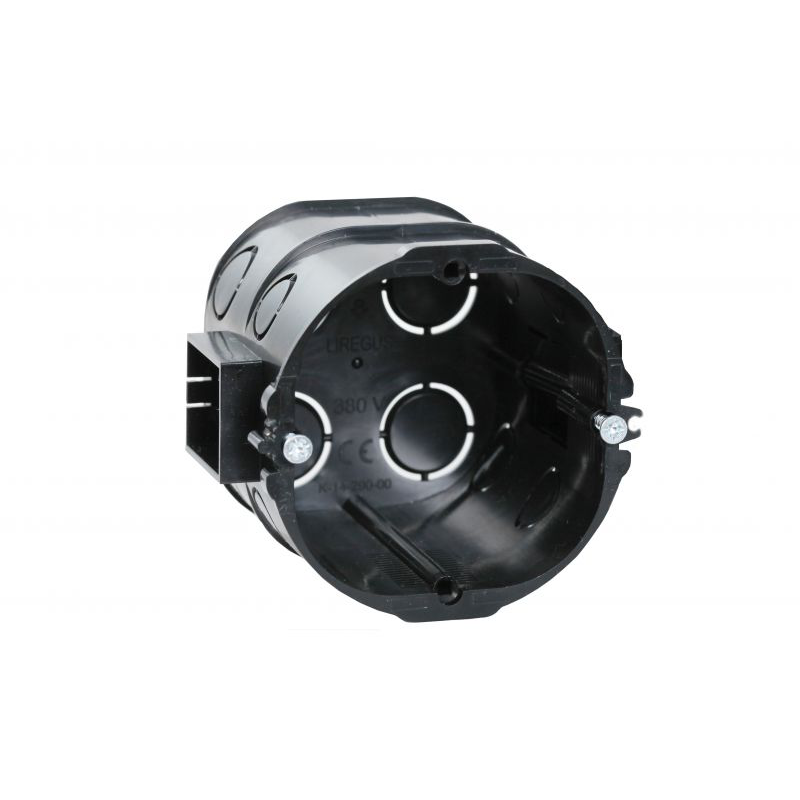

LIREGUS MD2 J extended black surface-mounted box

Reference: P001054

Code: 4770025874073

This product is in stock

Manufacturer

0,40 €

Quantity

Warehouse stock

Out of stock

Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)

+370 687 57400

I - V 07:00 - 16:00

In stock

Elstila (Kaunas) Jonavos g. 62a

+370 37 205802

I - V 08:00 - 17:00

Out of stock

Elstila (Klaipėda) Šiaurės pr. 11

+370 46 380100

I - V 08:00 - 17:00

Out of stock

Elstila (Vilnius) Geologų g. 7a

+370 5 2104888

I - V 08:00 - 17:00

IP2x category series of installation boxes, designed for concealed installation in brick walls of residential and industrial buildings;

Complies with German DIN 49073, flammability class up to >650°C, based on standard VDE 0471/DIN IEC 695 part 2-1. Plastic - ABS;

Equipped with convenient for mounting 2 pcs. wood screws 3x16 DIN7982C,Pz2 (hidden conical head);

The boxes firmly connect by snapping, both on top and at the bottom of the box (2 fixators, 1 connection module);

Strictly controlled connection dimension 71mm.

MD-1 and MD-2 installation box depths:

For a shallow (thin) wall, choose a small/shallow 47.1mm box (MD-1);
For a thicker wall or when installing more cables or electronic devices, choose a deeper 62.5mm box (MD-2);
After plastering the wall, and later gluing the tiles, it is possible to elevate (12mm.) the installation box with an elevation (MDP-12).

Boxes can be connected horizontally or vertically, even with different depths;

Suitable for devices with a 70 mm center-to-center distance;
Both vertical and horizontal installation frames can be used;
The boxes connect using snap-locks;
The boxes are flame-resistant, thus protecting against the risk of fire that can be caused by a short circuit (tested using a wire heated up to 650°C);
Sturdy enough to withstand the installation process in brick walls without breaking;
Comprehensive tests have shown that they retain their shape and all functions at temperatures from +60°C to -25°C;
We recommend drilling with an 82mm diamond drill bit);

Information from the manufacturer's website
