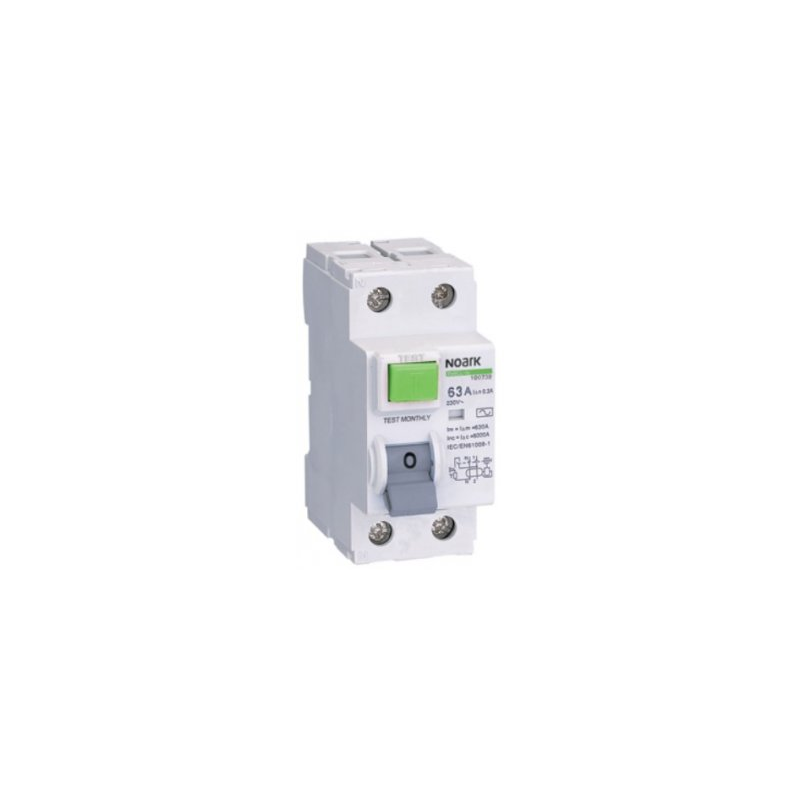

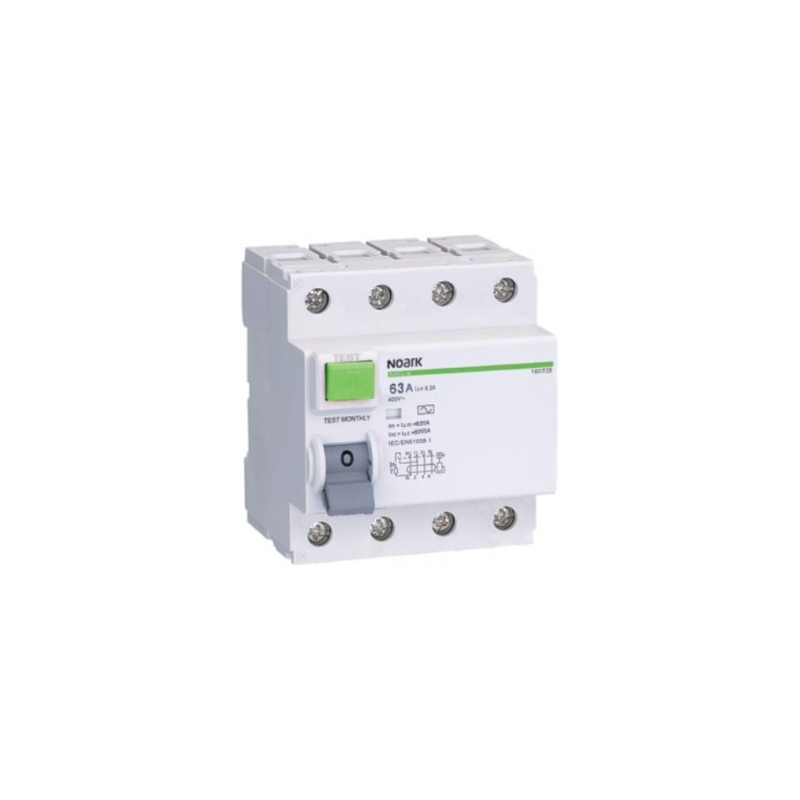

Residual current devices of two-pole or four-pole construction Ex9L-H and Ex9L-N. The technology is based on the classic principle of a permanent magnet and electromagnetic fittings, due to which the protective functions are completely independent of voltage.
AC, A, S, S+A, G and G+A types are suitable for nominal current from 16 to 63 A;
The nominal residual current includes sizes of 10, 30, 100, 300 and 500 mA.
The devices comply with the requirements of IEC/EN 61008-1 standards.
The Ex9L-H series are residual current devices with a conditional short-circuit capacity of 10 kA..
The basic Ex9L-N series residual current devices are offered with a conditional 6 kA short-circuit capacity.
• Residual current circuit breakers according to EN 61008-1
• Conditional specified short-circuit strength Inc 10 kA (-H) and 6 kA (-N)
• 2 and 4 pole versions
• Specified residual current 10, 30, 100, 300 and 500 mA
• Specified current up to 63 A
• Specified operating voltage 230/400 V AC
• AC, A, S, S+A, G, G+A types
• Operation indication
Information from the manufacturer's website
Product features
Nominal voltage | 230/400 V AC |
Rated current | iki 63A |
Mounting | DIN 35 mm |
Size | 2 modulių |
Breaking capacity | 6 kA |
Number of poles | 2P ir 4P |
