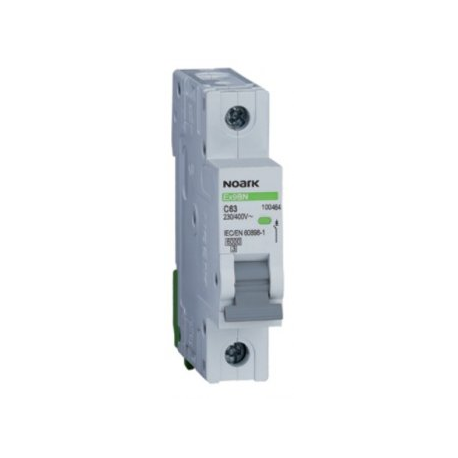

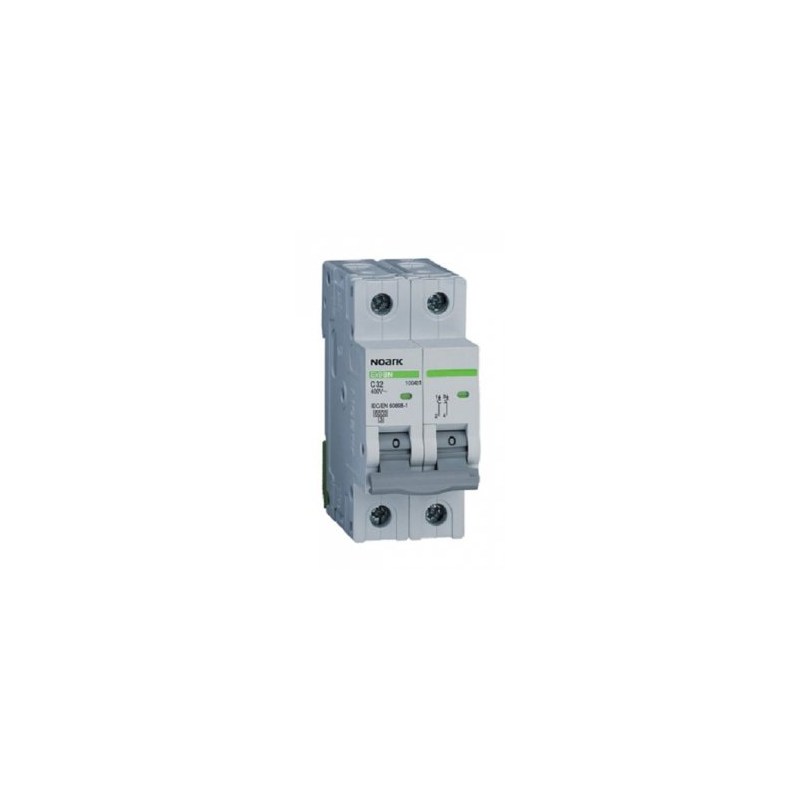

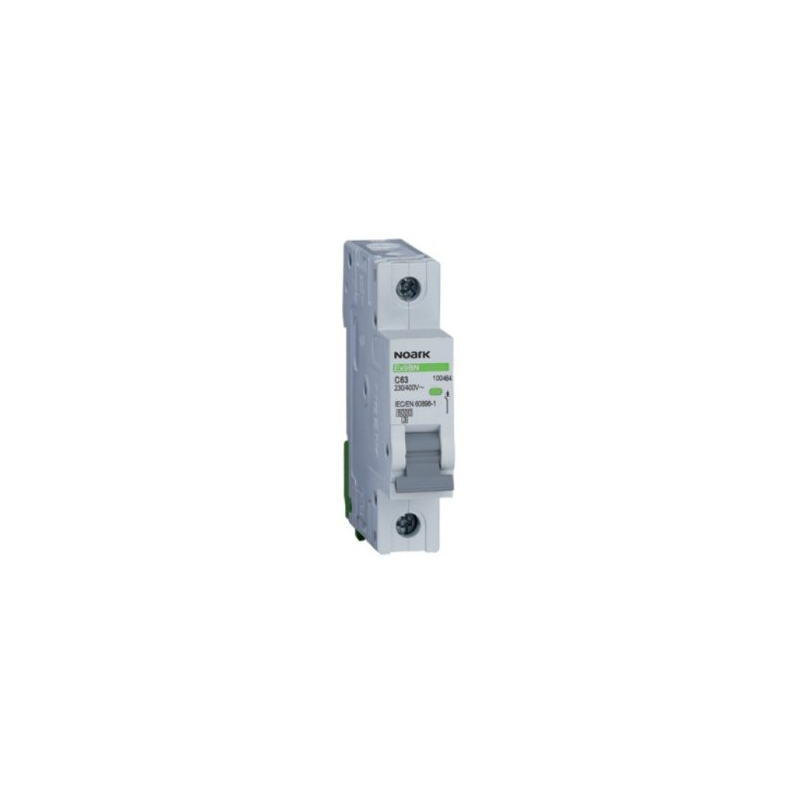

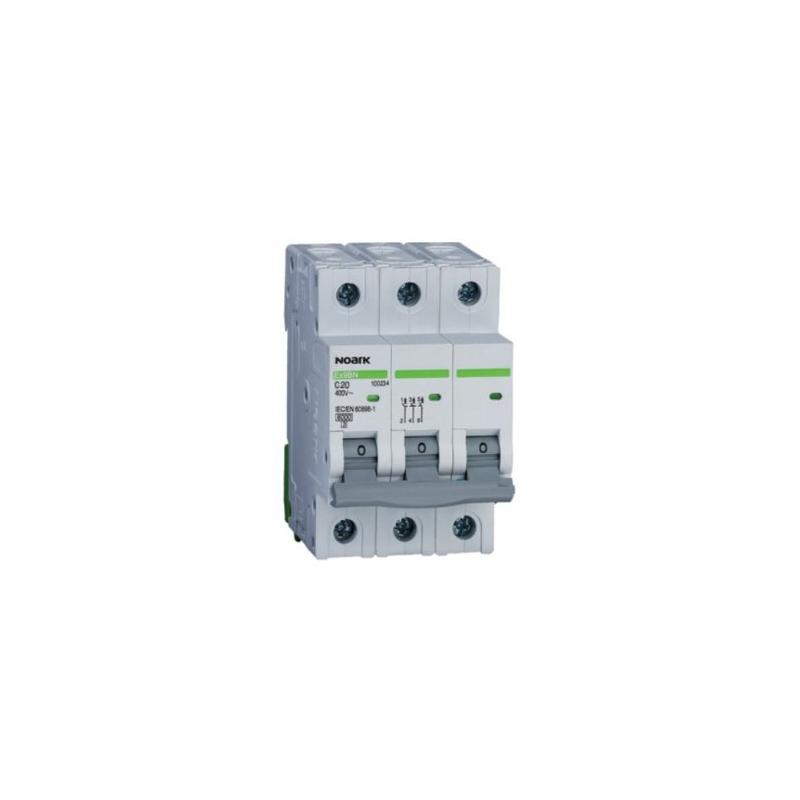

NOARK Ex9BN Miniature Circuit Breaker
Reference:
noark-ex9bn
Manufacturer
Warehouse stock
In stock
Elstila logistikos centras
9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V
07:00 - 16:00
In stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
In stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
In stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
More info
Modular Ex9BH and Ex9BN circuit breakers are universal devices for comprehensive use, meeting the high requirements set by EN 60898 for domestic fuses, designed for nominal current from 1 to 63 A. The breaking capacity in case of short circuit for Ex9BH line is 10kA and for Ex9BN line is 6 kA. In both cases, the value applies to all versions of circuit breakers, that is, up to a nominal current of 63 A with a D disconnection characteristic.
Product features
| Nominal voltage | 230 V AC |
| Rated current | iki 63A |
| Mounting | DIN 35 mm |
| Size | 1 - 3 modulių |
| Breaking capacity | 6 kA |
| Disconnection characteristic | B |
| Number of poles | 1-3P |
