ETI EFI-P Current Flow Relay
- Monitors and controls current flow with precision
- Compact design suitable for various electrical systems
- High reliability and durability for industrial applications
- Easy installation and integration with existing setups
- Complies with international safety standards
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
The EFI-P leakage switch is of two types:

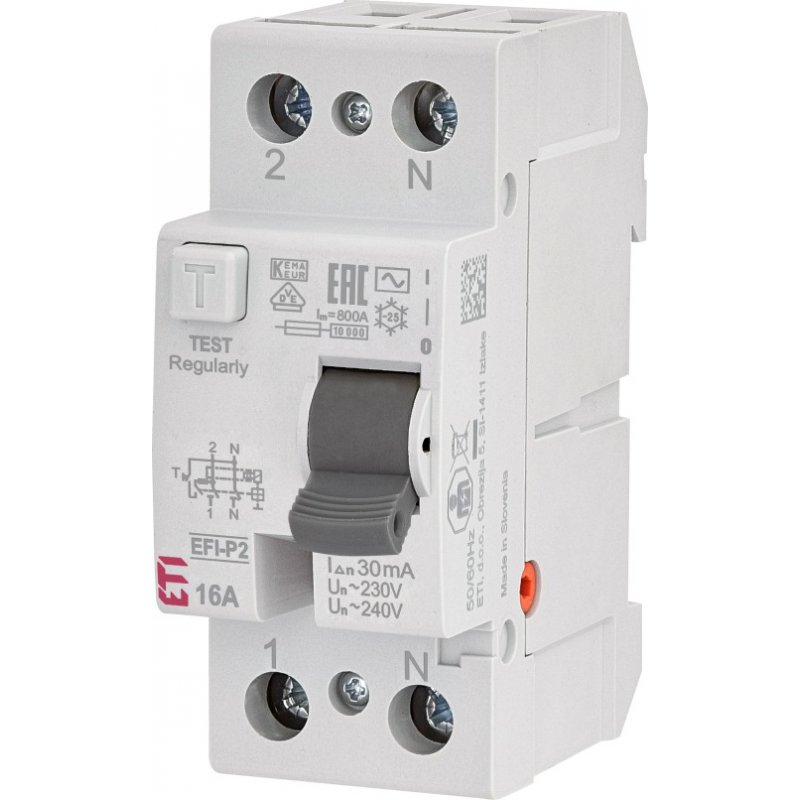

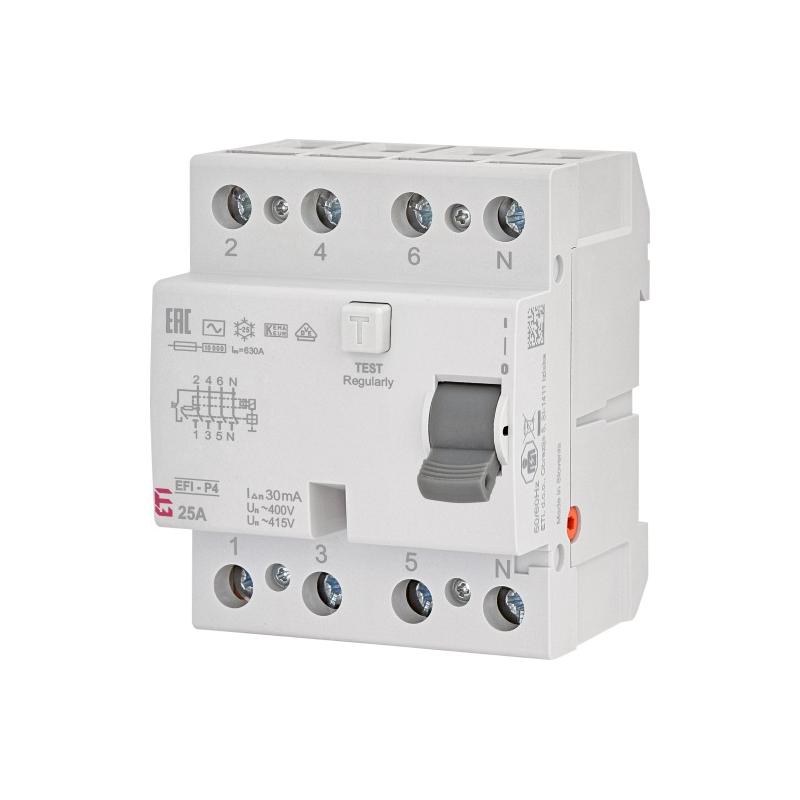

Double-pole execution EFI-P2 and four-pole execution EFI-P4.
EFI-P leakage current relays are designed to protect humans from electric current. This is possible when directly touching current-conductive parts, damaging the power cable, or when a breakthrough occurs in the casing. These tasks, which cannot be solved by other equipment, are intended to protect electrical circuits from short circuits and overloads. By using leakage current relays, you primarily protect your life, and also eliminate the risk of fire when the electrical installation is damaged. This product is suitable for TN-S, TN-C-S, TT, IT electrical installations, where neutral and grounding wires are separate.
Features:
→ possibility to busbar from top and bottom,
→ possibility to connect power from top and bottom,
→ wide range of nominal currents,
→ easily mountable auxiliary contacts,
→ reliable mechanical construction.
Product features
| Nominal voltage | 230 / 400 V AC |
| Size | 2 ir 4 modulių |
| Breaking capacity | 10 kA |
| Type | AC arba A (jautresnė) |
| Sensitivity | 30 mA |
