TT Cables AXCMK-HF XLPE Insulated Cable
- High-performance XLPE insulation for superior electrical properties and thermal resistance
- Halogen-free design ensures low smoke emission and enhanced safety in case of fire
- Robust construction suitable for industrial and commercial applications
- Excellent resistance to moisture, chemicals, and mechanical stress
- Complies with international standards for reliability and durability
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
APPLICATION
Aluminum power cable designed for permanent installation both indoors and outdoors. Suitable for direct burial in the ground. The conductor insulation must be protected against ultraviolet (UV) exposure. All installation work must comply with applicable national standards and regulations. This cable is halogen-free and exhibits flame-retardant properties, classified under CPR as Dca-s1,d2,a1.

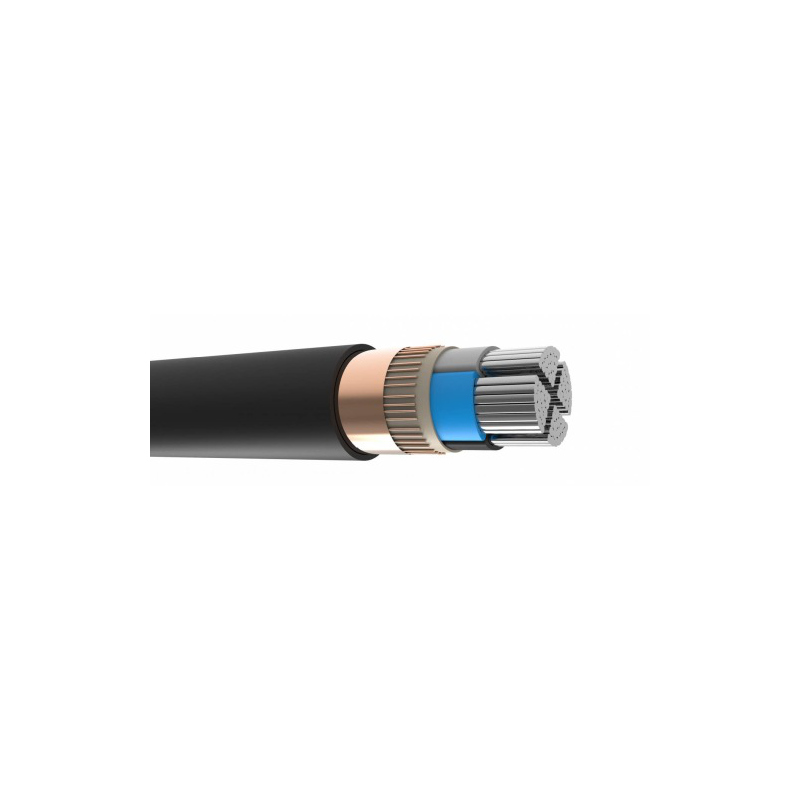

Construction
Conductors: Al, class 2 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Concentric conductor: Cu wires with counter helix
of Cu tape
Sheath: HFFR compound
Tehnical characteristics
CPR class: Dca – s1,d2,a1
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Min. working temperature: -40°C
Fire properties: IEC 60332-1-2; IEC 60332-3-24
IEC 61034-2; IEC 60754-1
IEC 60754-2
Information on the manufacturer's website
Product features
| Isolation | XLPE |
| Max. operating temperature | +90° C |
| Sheath | HFFR |
| Insulation color | juoda |
