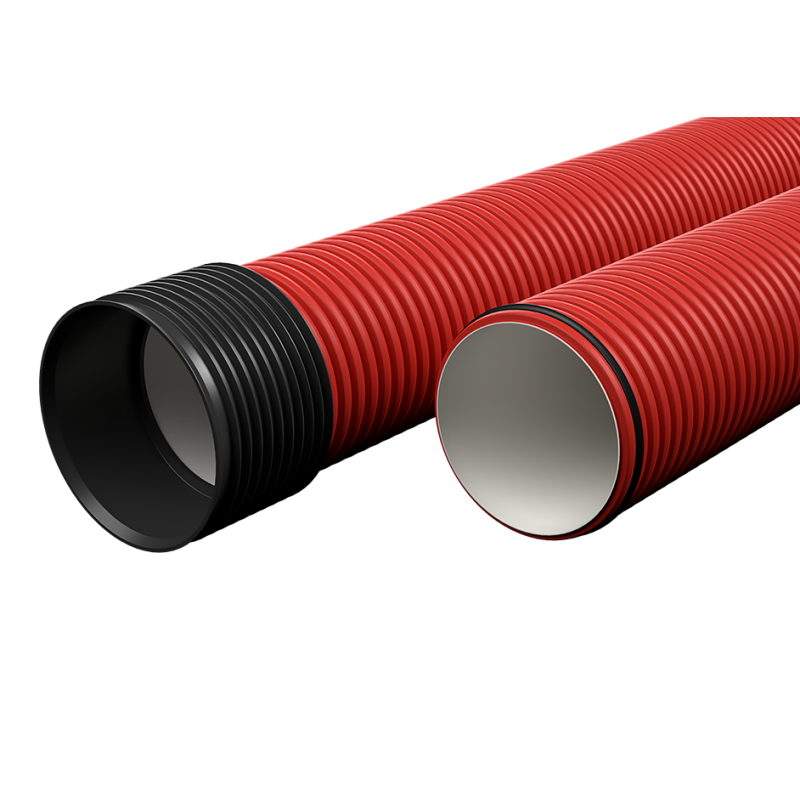

EVOPIPES EVOCAB SUPERHARD corrugated pipe

Reference: evocab-sh
This product is in stock
Manufacturer Evopipes
9,00 €
Quantity

Warehouse stock

In stock
Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V 07:00 - 16:00
Out of stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
Out of stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
Out of stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

More info

Reinforced double-wall cable ducts EVOCAB SUPERHARD 1250N are designed for laying underground high voltage cable lines. Due to the physical properties of polypropylene and the special structure of the ducts, they have a high mechanical resistance (1250N) and high impact resistance. EVOCAB SUPERHARD 1250N ducts have structural walls: their exterior is corrugated, and due to their profile properties, they have high mechanical resistance parameters. The smooth inner surface of the duct ensures smooth cable pulling. Due to their special construction, the ducts are lighter and at the same time stronger, even more resistant to impacts compared to regular smooth wall ducts. The duct system consists of DN 110, 160, 200, 250, 315, 400, 500 mm ducts (DN = OD, nominal outer diameter), also standardized connecting duct system parts (connecting sleeves, turning elements, end caps, reducing transitions). The ducts are delivered in straight 6 m units (+ sleeve). Standardly, the protective duct is red (RAL 3020). Other colors can also be chosen if desired. The duct system ensures airtightness up to 0.5 Bar.

Information on the manufacturer's website

Product features

Color red
Material polipropilenas (PP)
Temperature -40° C iki +95° C
Mechanical resistance 1250 N
Length 6 m (tiesūs)
