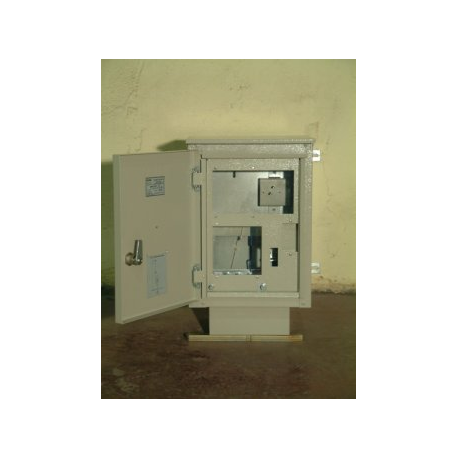

ELGA ĮAS-7-101 introductory electrical metering panel

Reference: 73232
Code: 50388
This product is no longer in stock
Manufacturer Elga (Lietuva)
106,00 €
Quantity

Warehouse stock

Out of stock
Elstila logistikos centras 9-ojo forto g. 65 (parduotuvės nėra)
+370 687 57400
I - V 07:00 - 16:00
Out of stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
Out of stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
Out of stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

More info

The box is designed for the user to connect to a single-phase 230 V voltage 50 Hz frequency electrical network with a grounded neutral, for energy consumption accounting and protection of the user from overload and short circuit consequences. Single-phase accounting and overload and short circuit protection devices are installed in the box. All types of single-phase direct connection electric energy meters, which are included in the Lithuanian Republic's measurement instruments register, can be installed in the box.

Product features

Degree of protection IP 44
Nominal voltage 230 V AC
Rated current 10 - 40 A
Dimensions (W x H x D) 410 x 300 x 180 mm
