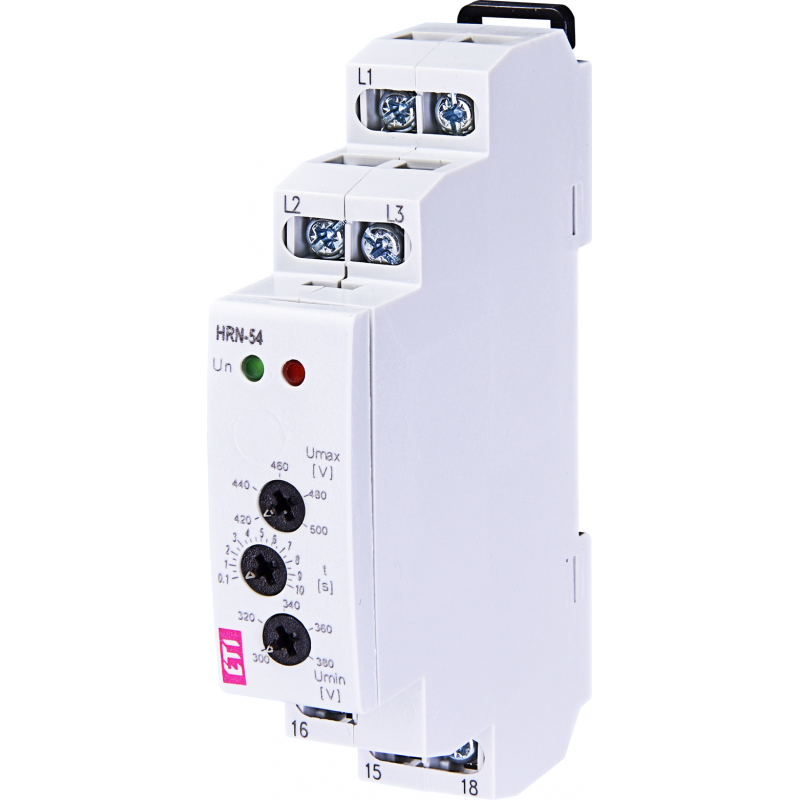

ETI HRN-54 Phase Sequence Relay
- Ensures correct phase sequence and phase loss detection for three-phase systems
- Compact design suitable for DIN rail mounting
- LED indicators for easy status monitoring
- Wide operational voltage range: 208-480V AC
- Reliable protection for motors and other three-phase equipment
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
Purpose - it is possible to control the phase sequence and absence in a three-phase network, intended for the protection of electric motors from phase loss or sequence change. It is possible to control the voltage Umax and Umin limits, adjust the delay in case of voltage jumps. Umax 105-125% Un, U min 75-95% Un. Delay t1 max. 500ms. Delay t2 0.1-10 sec. Wire cross-section max. 1 x 4 mm², 2 x 2.5 mm². The relay operates even if one of the phases is missing.
Information on the manufacturer's website
Product features
| Degree of protection | IP 40 |
| Rated current | 8 A (AC1) |
| Power | 2500 VA |
| Contacts | 1 x permetamas 8 A / AC1 |
| Power supply voltage | 3 x 400 V |
| Power contacts | L1, L2, L3 |
