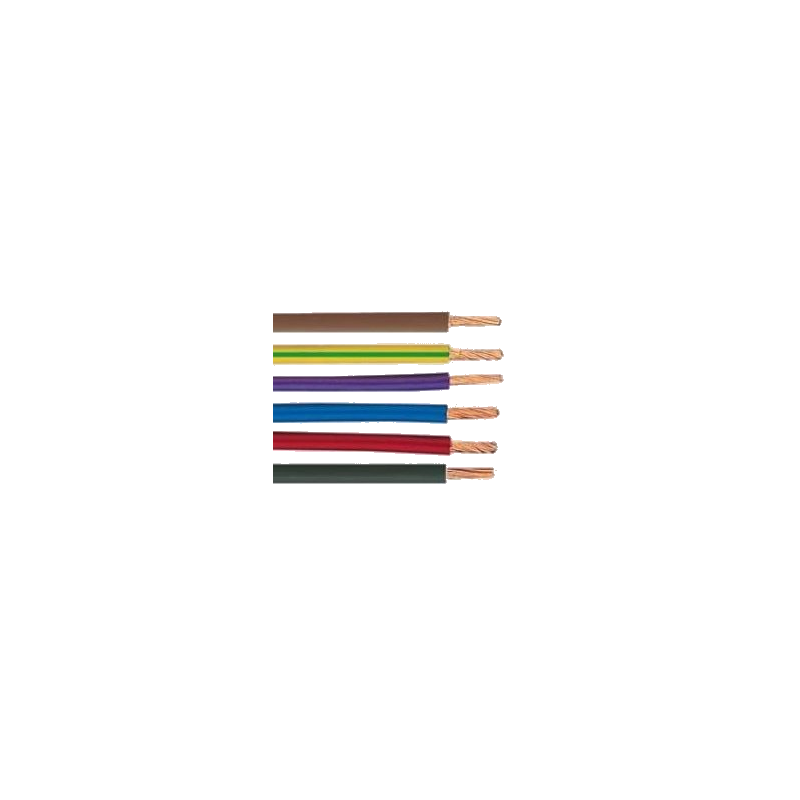

Flexible Single-Core Stranded Wire H05V-K (LGY-5)
- High flexibility and easy installation
- Suitable for low voltage applications
- PVC insulation provides good protection and durability
- Complies with international standards
Warehouse stock
More info
The H05V-K (LGY-5) is a flexible single-core stranded wire designed for various electrical installations. This wire is particularly useful for fixed installations in places where flexibility is required, such as in control cabinets, appliances, and lighting. The fine stranded copper conductor ensures high flexibility, making the wire easy to route and install in tight spaces.
The H05V-K wire is insulated with PVC (Polyvinyl Chloride), which offers good protection against mechanical damage and environmental factors. It is suitable for use in dry environments and can be installed in conduits or similar closed systems. This wire is compliant with several international standards, ensuring safety and reliability in various applications.
Technical Specifications:
- Type: Flexible Single-Core Stranded Wire
- Series: H05V-K (LGY-5)
- Conductor Material: Annealed copper, class 5 (according to EN 60228)
- Insulation Material: PVC (TI1 type, according to EN 50363-3)
- Voltage Rating: 300/500V
- Temperature Range: -5°C to +70°C (continuous), up to 160°C (short circuit)
- Bend Radius: Minimum 4x the cable diameter
- Color Options: Available in various colors including black, white, red, blue, yellow/green
- Standards Compliance: EN 50525-2-31, IEC 60227, CE, RoHS
Product features
| Nominal voltage | 300/500 V |
| Isolation | PVC |
| Max. operating temperature | 70° C |
| Conductor | 5-os klasės varinė gysla |
